SEM Wheel Loader 655D (STAGE III) Implement Device (Pilot) Hydraulic System Assembly

Категория: SEM

Оставить заявку

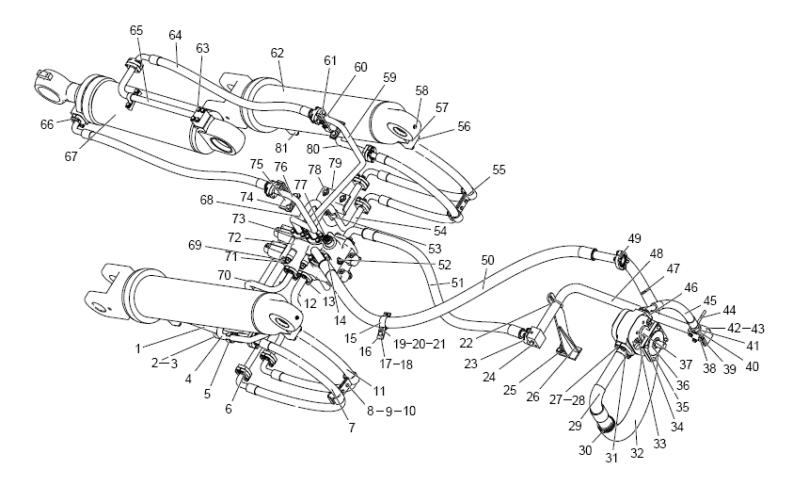

工作装置(先导）液压系统总成 Implement Device (Pilot) Hydraulic System Assembly

序号 SER.NO	零件名称	Part name	零件编码 Part code	数量 Quantity	备注 Remarks
1	举升缸小腔接管	Lift Small Chamber Tube	Z520520620	1
2	上管夹	Upper Clip	Z5205226200	2
3	下管夹	Lower Pipe Clip	Z5205226300	2
4	左举升缸接管	Left Lift Cylinder Oil Pipe	Z520521460	1
5	管卡	Tube Clip	Z520522610	4
6	拼合法兰	Split Flange	Z610200080	10
7	举升高压软管总成(左)	Lift Hydraulic Pipe (Left)	NZ5B2000150010	2
7	举升高压软管总成(右)	Lift Hydraulic Pipe (Right)	NZ5B2000150020	1
8	螺母 M8	Nut	B050330807	12
9	螺栓 M8×25	Bolt	B040910825	4
10	垫圈 8-300HV	Washer	B060460802	6
11	举升高压软管总成(左)	Lift Hydraulic Pipe (Left)	NZ5B2000130010	1
11	举升高压软管总成(右)	Lift Hydraulic Pipe (Right)	NZ5B2000130020	1
12	工作阀举升大腔接管	Lift Fittings Of Implement Valve	Z52281001	1
13	螺栓 M10×30	Bolt	B040911030	86
14	螺栓 M12×35	Bolt	B040911235	6
15	管卡Ⅱ	Tube Clip	Z520522500	1
16	管卡Ⅰ	Tube Clip	Z520522490	1

工作装置(先导）液压系统总成 Implement Device (Pilot) Hydraulic System Assembly

序号 SER.NO	零件名称	Part name	零件编码 Part code	数量 Quantity	备注 Remarks
19	螺栓 M6×25	Bolt M6×25	B040910625	2
20	螺母 M6	Nut M6	B050330605	2
21	垫圈 6-300HV	Washer 6-300Hv	B060460602	2
22	U 型螺栓	U Bolt	Z5B019015	1
23	拼合法兰	Split Flange	Z5301905900	1
24	测压接头 TC-D10	Pressure Tap Tc-D10	W152200000	1
25	垫圈 10-200HV	Washer 10-200Hv	B060331003	2
26	硬管支架	Tube Bracket	Z5B019011	1
27	垫圈 12-300HV	Washer 12-300Hv	B060461203	21
28	垫圈 12-300HV	Washer 12-300Hv	B060461203	8
29	工作泵吸油接头	Implement Inlet Oil Fitting	Z52280023	1
30	喉箍（不锈钢） D58-D83	Hose Clamp	B190120800	2
31	O 形圈 47.5×3.55	O-Ring 47.5×3.55	B160130475	1
32	低压耐油胶管	Lower Pressure Hose	Z52280025	1
33	螺母 M12	Nut M12	B050331211	7
34	螺柱 M12×35	Theaded Stud M12×35	B100111235	2
35	螺栓 M12×35	Bolt M12×35	B040911235	10
36	垫片	Gasket	Z5A20202700

工作装置(先导）液压系统总成 Implement Device (Pilot) Hydraulic System Assembly

序号 SER.NO	零件名称	Part name	零件编码 Part code	数量 Quantity	备注 Remarks
36	垫片	Gasket	Z5A20202700	1
37	齿轮泵 1151011001	Gear Pump1151011001	W067400000B	1
38	接头	Connection Fitting	Z520520920	1
39	垫圈 10-300HV	Washer 10-300Hv	B060461002	1
40	O 形圈 30×3.55	O-Ring 30×3.55	B160130300	1
41	接头	Connection Fitting	Z5A20001600	1
42	O 型圈 11.2×2.65	O-Ring 11.2×2.65	B160120112	1
43	O 形圈 32.93×3.53	O-Ring 32.93×3.53	B160130329	7
44	螺栓 M10×160	Bolt M10×160	B040820028	1
46	拼合法兰	Split Flange	Z520180060	1
47	喉箍（不锈钢） D58-D83	Hose Clamp（Stainless Steel）	B190120800	2
48	硬管组件( 合流)	Tube Assembly( Combining)	Z52281009	1
49	拼合法兰	Split Flange	Z610200090	3
50	工作阀回油管	Implement Valve In let Hose	Z5A20001900	1
51	高压软管组件(L=1180)	High Pressure Hose Assembly	Z52281003	1
52	先导工作阀固定螺栓 167	Pilot Implement Valve Fixed Bolt	Z520520490	2
53	管卡	Tube Clip	Z5205229100	1

工作装置(先导）液压系统总成 Implement Device (Pilot) Hydraulic System Assembly

序号 SER.NO	零件名称	Part name	零件编码 Part code	数量 Quantity	备注 Remarks
54	接管	Union Pipe	Z520520670	1
55	管卡	Tube Clip	Z520190070	4
56	垫圈 10-300HV	Washer	B060461002	112
57	O 形圈 33.5×3.55	O R ing	B160130335	5
58	油杯 M10×1	Oil Cup	B150101000	2
59	工作阀翻斗硬管右	Implement Valve Tip Tube	Z52281007	1
60	U 型螺栓（M8×Φ30）	U Bolt	Z5B01900900	2
61	支架	Support	Z5B01900800	1
62	举升油缸 Φ170×721	Lift Cylinder	W058000000	2	*
63	螺栓 M10×65	Bolt	B040811065	20
64	翻斗大腔高压油管(1150)	High Pressure Hose	Z5B20002100	1
65	翻斗缸大腔接管	Tilt Cylinder Large Chamber Tube	Z5B20006400	1
66	拼合法兰	Split Flange	Z610200060	4
67	翻斗油缸 Φ190×563	Cylinder	W050000000	1	*
68	接管	Union Pipe	Z5A20001200	1
69	螺母 M12	Nut	B050331211	2
70	工作阀下降中接	Implement Descending Fittings	Z5A20004800	1
71	垫圈 12-200HV	Washer 12-200HV	B060331203	G4

工作装置(先导）液压系统总成 Implement Device (Pilot) Hydraulic System Assembly

序号 SER.NO	零件名称	Part name	零件编码 Part code	数量 Quantity	备注 Remarks
72	工作分配阀 D32	Implement Dispensing Valve	W273400000	1
73	拼合法兰	Split Flange	Z520180060	4
74	螺栓 M12×25	Bolt M12×25	B040911225	4
75	支架	Bracket	Z5B019016	1
76	工作阀翻斗硬管左	Implement Valve Tube L	Z52281005	1
77	先导工作阀固定螺栓 142	Pilot Implement Valve Fixed Bolt	Z520520480	1
