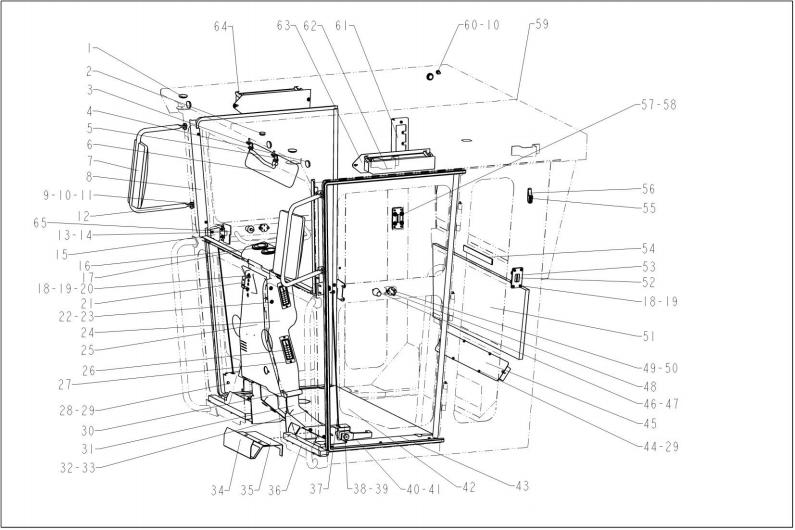

| 序号
SER.NO |
零件名称 | Part name | 零件编码
Part code |
规格/代号
Specification |
数量
QTY |
RPL |
| 1 | 密封盖Ⅰ | COVER | 5547628 | 2 | N | |
| 2 | 密封帽 | SEAL | 5178667 | 1 | N | |
| 3 | 螺栓 | BOLT | 5188388 | 2 | N | |
| 4 | 密封盖 | SEAL | 5178668 | 4 | N | |
| 5 | 内视镜支架 | BRACKET | 5530614 | 2 | N | |
| 6 | 内视镜 | MIRROR | 5536220 | 1 | Y | |
| 7 | 倒车镜 30F 型 | MIRROR | 5228074 | 2 | Y | |
| 8 | 挡板 | PLATE | 5530547 | 1 | N | |
| 9 | 螺栓 | BOLT | 5182310 | 4 | N | |
| 10 | 螺栓 | WASHER | 5184417 | 5 | N | |
| 11 | 螺栓 | NUT-HEX | 5186585 | 4 | N | |
| 12 | 后视镜支架 | BRACKET | 5530589 | 2 | N | |
| 13 | 螺栓 | NUT-HEX | 5186586 | 2 | N | |
| 14 | 钢铁制垫圈 | WASHER | 5184409 | 2 | N | |
| 15 | 盖板 | COVER | 5530603 | 2 | N | |
| 16 | 驾驶室用通风口组件 | LOUVER AS. | 3962352 | 2 | N | |
| 17 | 线路挡板(中) | PLATE | 5530584 | 2 | N | |
| 18 | 螺栓 | SCREW | 5186570 | 41 | N | |
| 19 | 螺栓 | WASHER | 5189743 | 46 | N | |
| 20 | 螺栓 | NUT-HEX | 5186583 | 2 | N | |
| 21 | 喷头支架 | BRACKET | 5530580 | 1 | N | |
| 22 | 螺栓 | SCREW | 5186571 | 4 | N | |
| 23 | 钢铁制垫圈 | WASHER | 5189735 | 15 | N |
| 24 | 仪表支架 | PANEL AS | 5530555 | 1 | N | |
| 25 | 雨刮器用盖板 | COVER | 1023645 | 1 | N | |
| 26 | 出风口 | VENT | 5391142 | 6 | N | |
| 27 | 自攻螺钉 | SCREW | 5531356 | 12 | N | |
| 28 | 螺栓 | BOLT | 5246917 | 4 | N | |
| 29 | 螺栓 | WASHER | 5189743 | 6 | N | |
| 30 | 密封圈 | SEAL | 5530541 | 2 | N | |
| 31 | 前下风道 | DUCT | 5530557 | 2 | N | |
| 32 | 垫圈 | WASHER | 5189737 | 1 | N | |
| 33 | 螺栓 | BOLT | 5190992 | 1 | N | |
| 34 | 盖板组件 | COVER AS | 6208634 | 2 | N | |
| 35 | 盖板组件 | COVER AS | 6208632 | 2 | N | |
| 36 | 橡胶塞 | PLUG | 5530579 | 2 | N | |
| 37 | 门锁拉杆(平地机) | ROD | 5530590 | 2 | N | |
| 38 | 右门锁盖板(下) | COVER | 5530599 | 1 | N | |
| 39 | 左门锁盖板(下) | COVER | 5530601 | 1 | N | |
| 40 | 门锁(右) | LOCK | 5386480 | 1 | Y | |
| 41 | 门锁(左) | LOCK | 5386481 | 1 | Y | |
| 42 | 橡胶地板 | FLOORMAT | 6208631 | 1 | N | |
| 43 | 门密封条 | SEAL BK | 5989311 | 98 | N | |
| 44 | 螺栓 | BOLT | 5188246 | 10 | N | |
| 45 | 回风虑网组件 | FILTER AS | 5391150 | 1 | N | |
| 46 | 缓冲器 | BUMPER AS | 5178661 | 2 | N |
| 47 | 螺栓 | NUT-HEX | 5186584 | 8 | N | |
| 48 | 锁止 | LOCK | 5386456 | 2 | N | |
| 49 | 螺栓 | BOLT | 5188387 | 6 | N | |
| 50 | 钢铁制垫圈 | WASHER | 5189744 | 12 | N | |
| 51 | 后海绵 | FOAM | 5530543 | 1 | N | |
| 52 | 减震垫 | MOUNT | 5390959 | 2 | N | |
| 53 | 盖板 | PLATE | 5545294 | 2 | N | |
| 54 | 防震垫 | SEAL | 5182248 | 1 | N | |
| 55 | 螺栓 | SCREW | 5183666 | 2 | N | |
| 56 | 挂衣钩 | HOOK | 5178604 | 1 | N | |
| 57 | 垫 | GASKET | 5530622 | 8 | N | |
| 58 | 螺栓 | SCREW | 5186570 | 14 | N | |
| 59 | 驾驶室焊接骨架组件 | FRAME AS | 5530456 | 1 | N | |
| 60 | 螺栓 | BOLT | 5182309 | 1 | N | |
| 61 | 顶灯支架 | BRACKET | 5530617 | 1 | N | |
| 62 | 新风虑网组件 | FILTER AS | 5391149 | 2 | N | |
| 63 | 盖板 | COVER | 5530546 | 2 | N | |
| 64 | 虑网压紧板 | PLATE | 5530744 | 4 | N | |
| 65 | 门锁盖板 | COVER | 5530613 | 2 | N |
